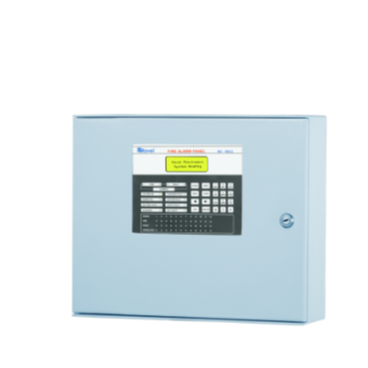

Ravel 12 Zone Panel

Add to Cart
View Brochure
Buy Now
  • Complies with UL -864 and NFPA-72.
  • 20 x 4 Dot Matrix LCD Display.
  • Operates on 120 – 220v 60 /50 Hz, AC Mains power supply.
  • Standby (battery) backup 24v DC power supply with builtin charger.
  • Touch Keypad for user friendly operation.
  • Epoxy powder coated finish.
  • Class- B, Style B / C initiating device circuit (IDC).
  • All zones accept smoke detectors and any normally open contact device.
  • Class B Notification Appliance Circuits (NAC).
  • NAC shall be programmed as auto silence / Silence Inhibit.
  • Error free Fire / Fault status in unambiguous colored LED indication.
  • 1000 Event storage with RTC.
  • Main, Standby status with audible and visual indication.
  • Two Form C relays for fire and fault.
  • Resettable / Steady 24V D.C. Output.
  • RS 485 Communication facility.
  • TCP/IP facility (Optional)
  • MODBUS for BMS integration (Optional).
  • PC software (optional)
  • External Zone Wise Sounder/Contact via RS 485 (Optional).
  • All field wiring circuits are supervised.
  • Zone Isolation facility with loop voltage cut off.
  • Zones available : 12, 16, 20, 24, 32, 48, 64,96 and 128.
  • Facility to connect Public Address System (PA) through RS-485 Communication.
  • Peer to Peer network facility.
  • Maximum 16 panels can be connect in a Single Network.
